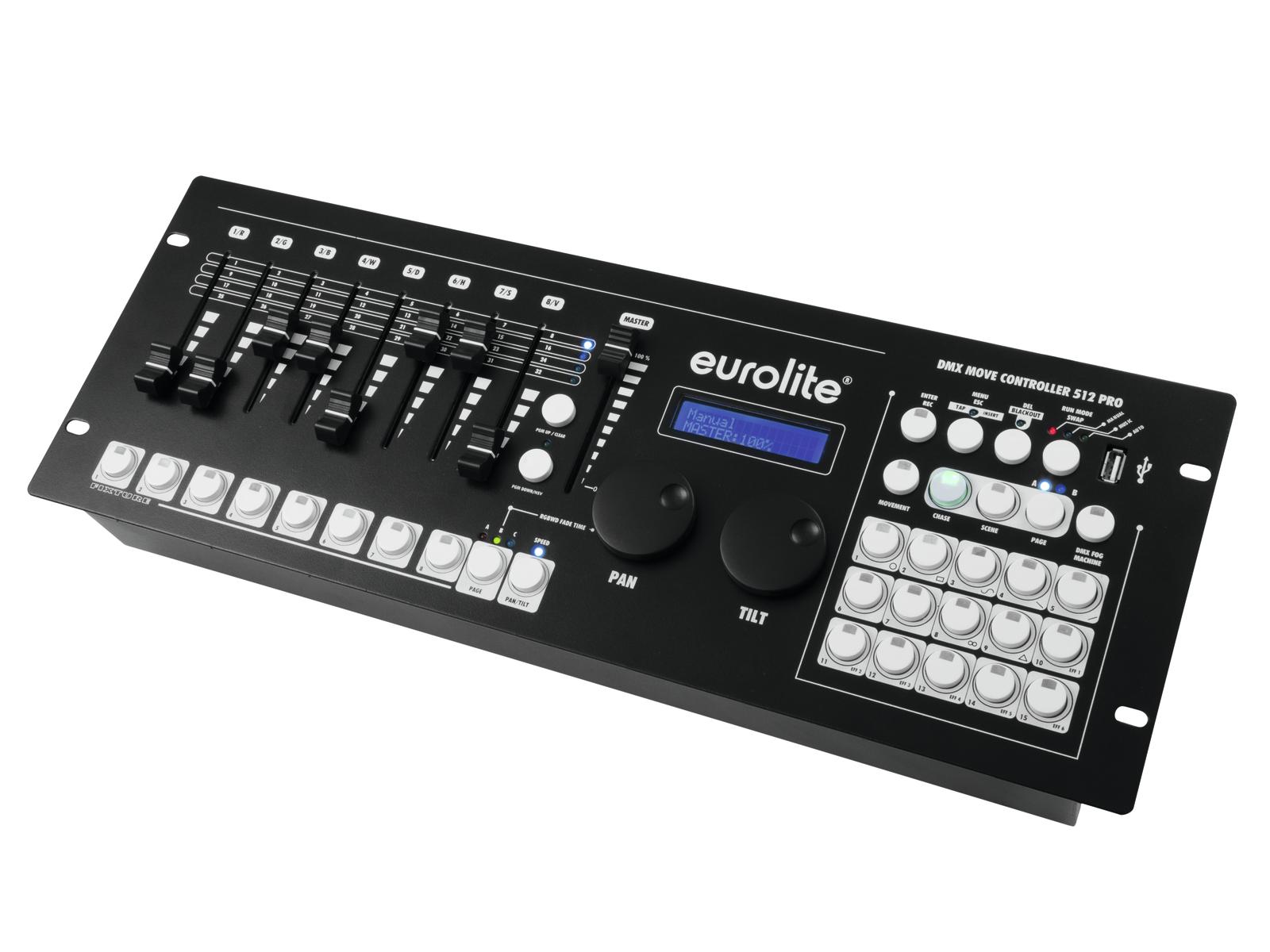

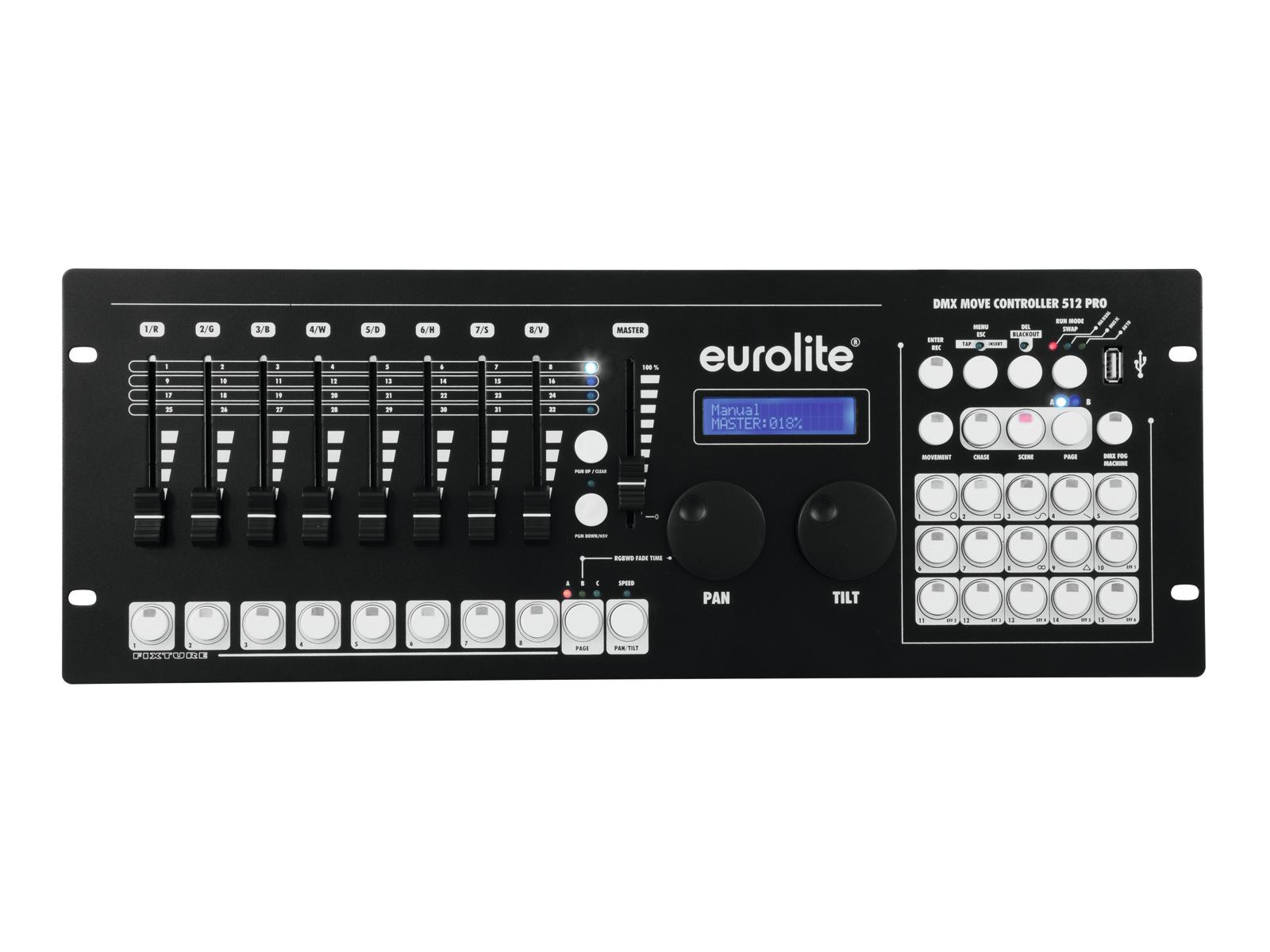

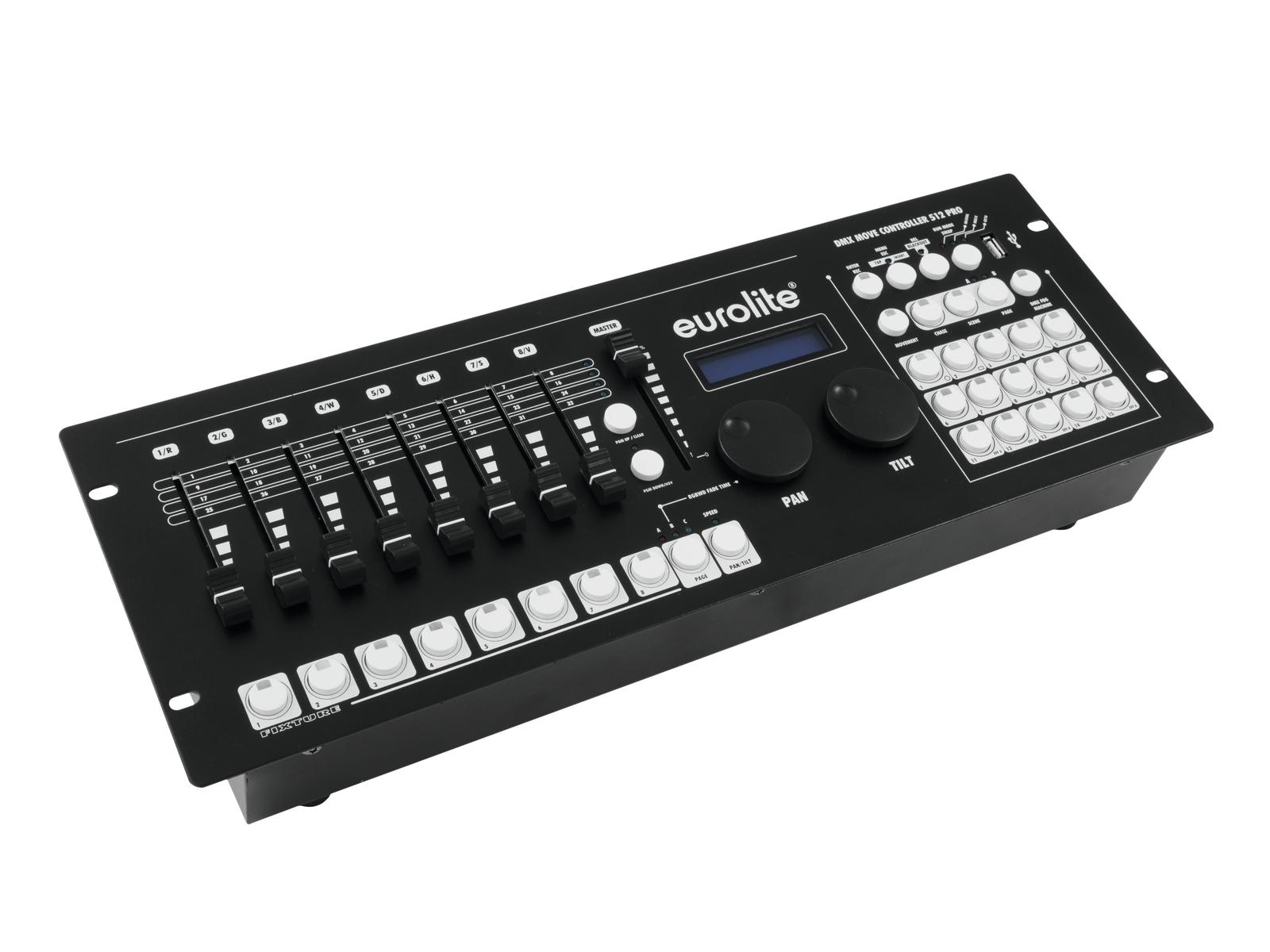

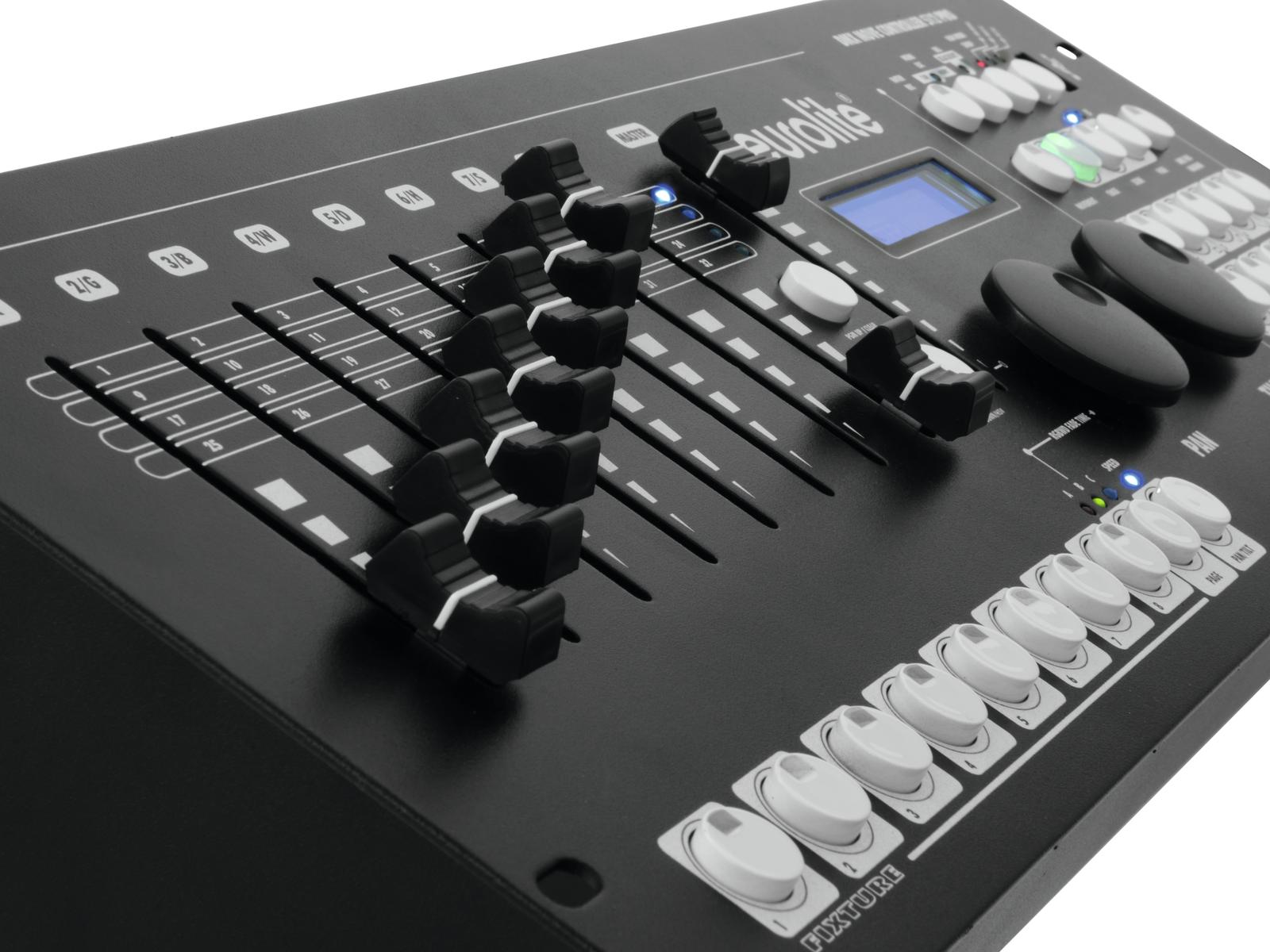

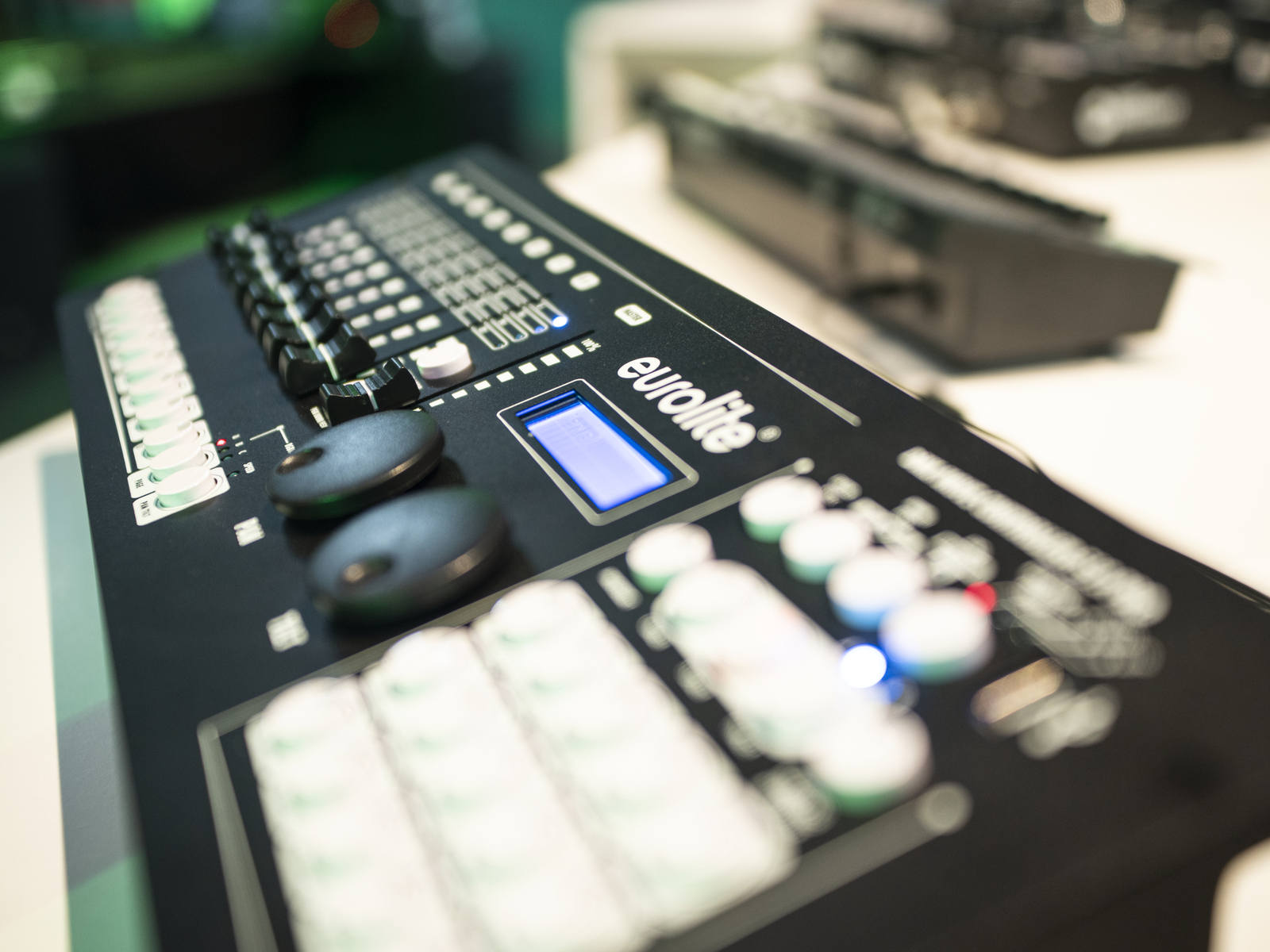

Console with motorized faders, color & motion effects (24 devices/34 channels)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
- For 24 fixtures with max. 34 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
- Several movement patterns and color effects can be used simultaneously
- Manual, time-controlled or sound-controlled chase running mode
- 3 DMX fixture levels can be controlled
- 8 motorized DMX channel faders for user-friendly control
- The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes

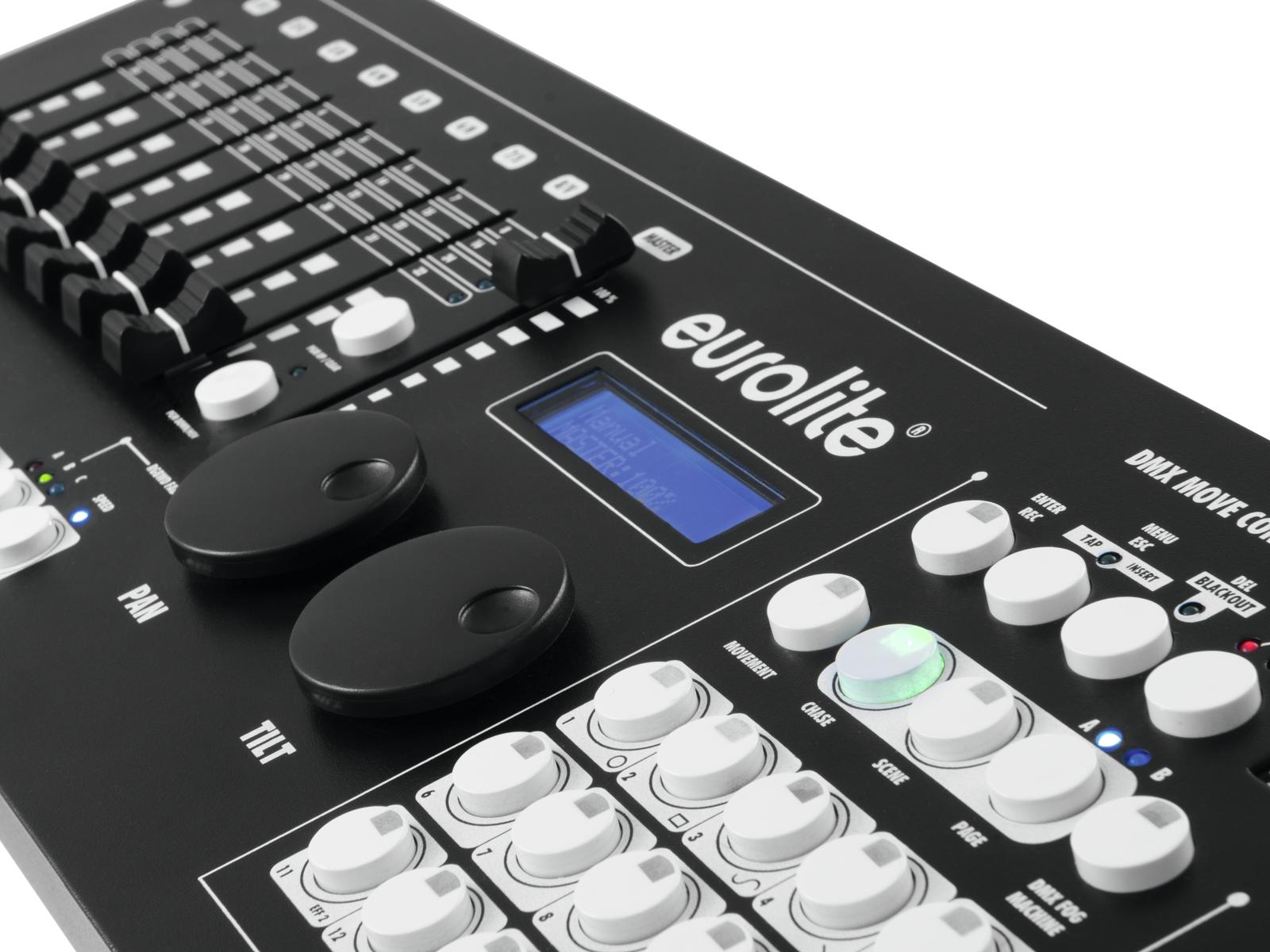

- 2 jog wheels for pan/tilt
- Master fader for color and dimmer channels
- Blackout function
- Color-illuminated buttons provide easy orientation
- Firmware update via USB
- Programmable 30 sequencens each with 485 scenes
- Can transmit up to 512 DMX channels
- Control via DMX; RDM
- (19″) 48.3 cm rack installation 4 U
- Desktop console housing
Package contents
- 1 x controller, 1 x user manual, 1 x power cord
