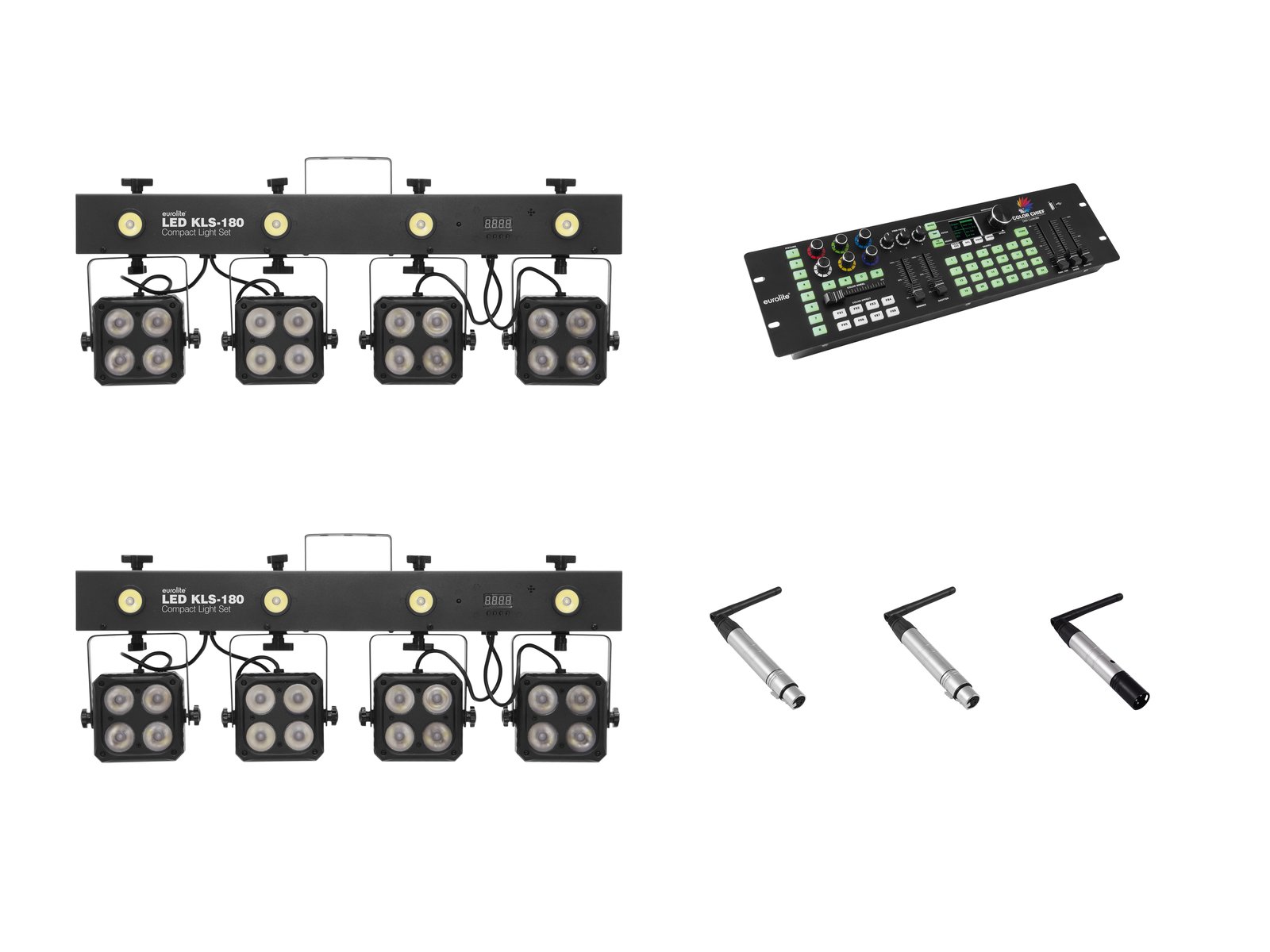

EUROLITE Set 2x KLS-180 + Color Chief + QuickDMX transmitter + 2x receiver

Compact light set with 2x KLS 180, DMX lighting desk, transmitter and 2x receiver

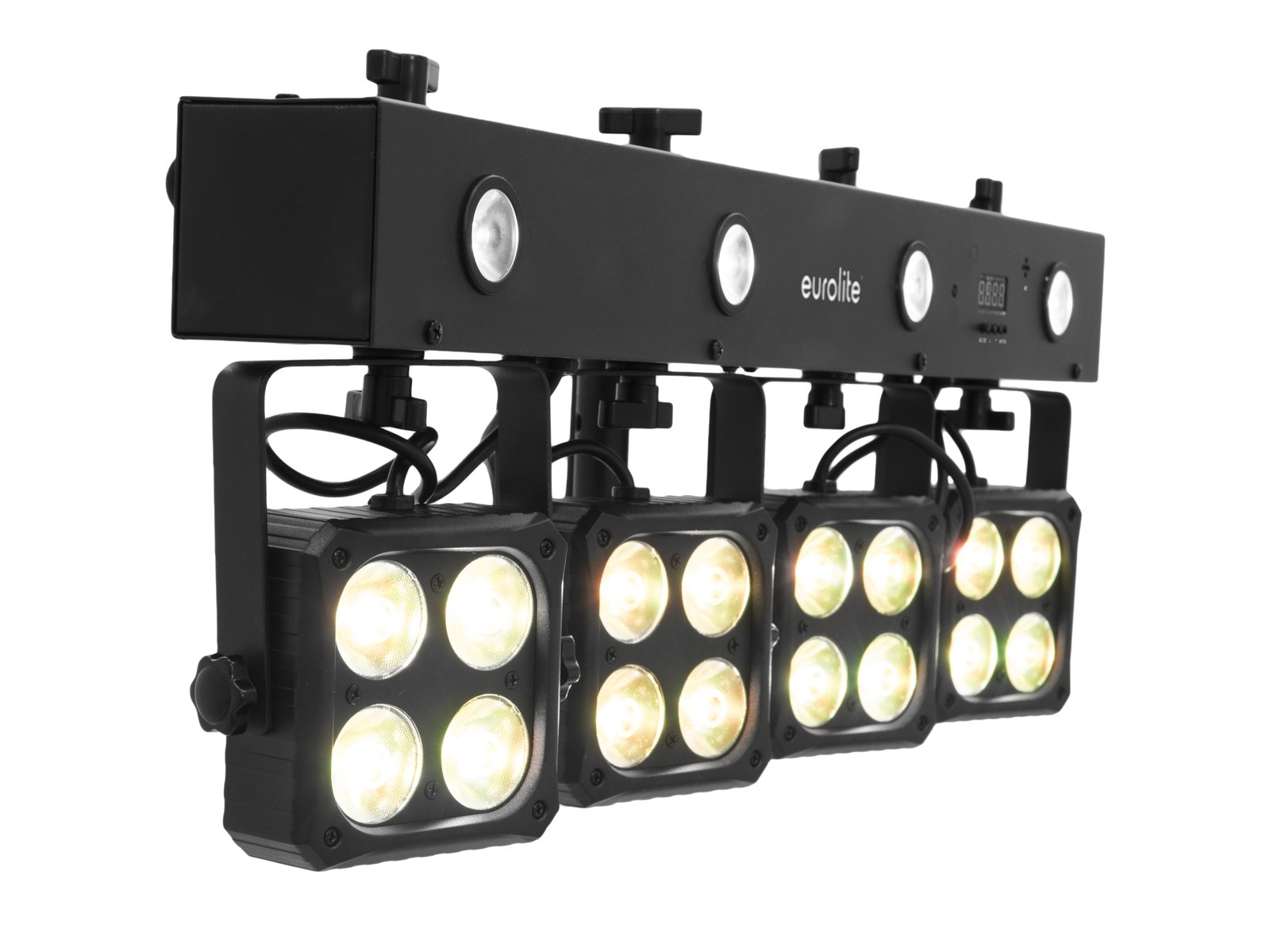

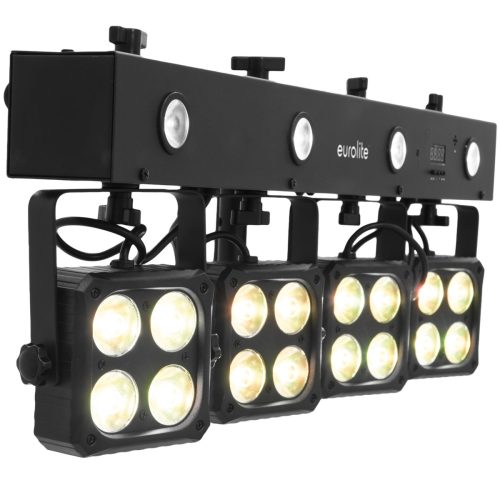

EUROLITE LED KLS-180 Compact Light Set

Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)

• Crossbar with integrated DMX control unit and stand sleeve
• Compact lightweight
• Silent operation
• Color blend stepless; color change adjustable; colors preset; Dimmer electronic
• Strobe effect
• Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function; QuickDMX via 5-pin XLR (M) mounting version (optional)
• Flicker-free
• Preprogrammed in EASY SHOW 1; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
• With Mounting bracket
• Mains input and output for power linking up to 8 units
• For application areas such as: Party room; mobile use; mobile djs / entertainer; small rental
• Application possibility: On stand

spotlight

• 4 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
  4 spots controlled separately

bar

• 4 powerful LEDs 1 W high-power cold white (CW)
  LEDs controlled separately

Package contents

• 1 x spotlight, 1 x bag, 1 x remote control, 1 x battery, 1 x power cord, 1 x user manual

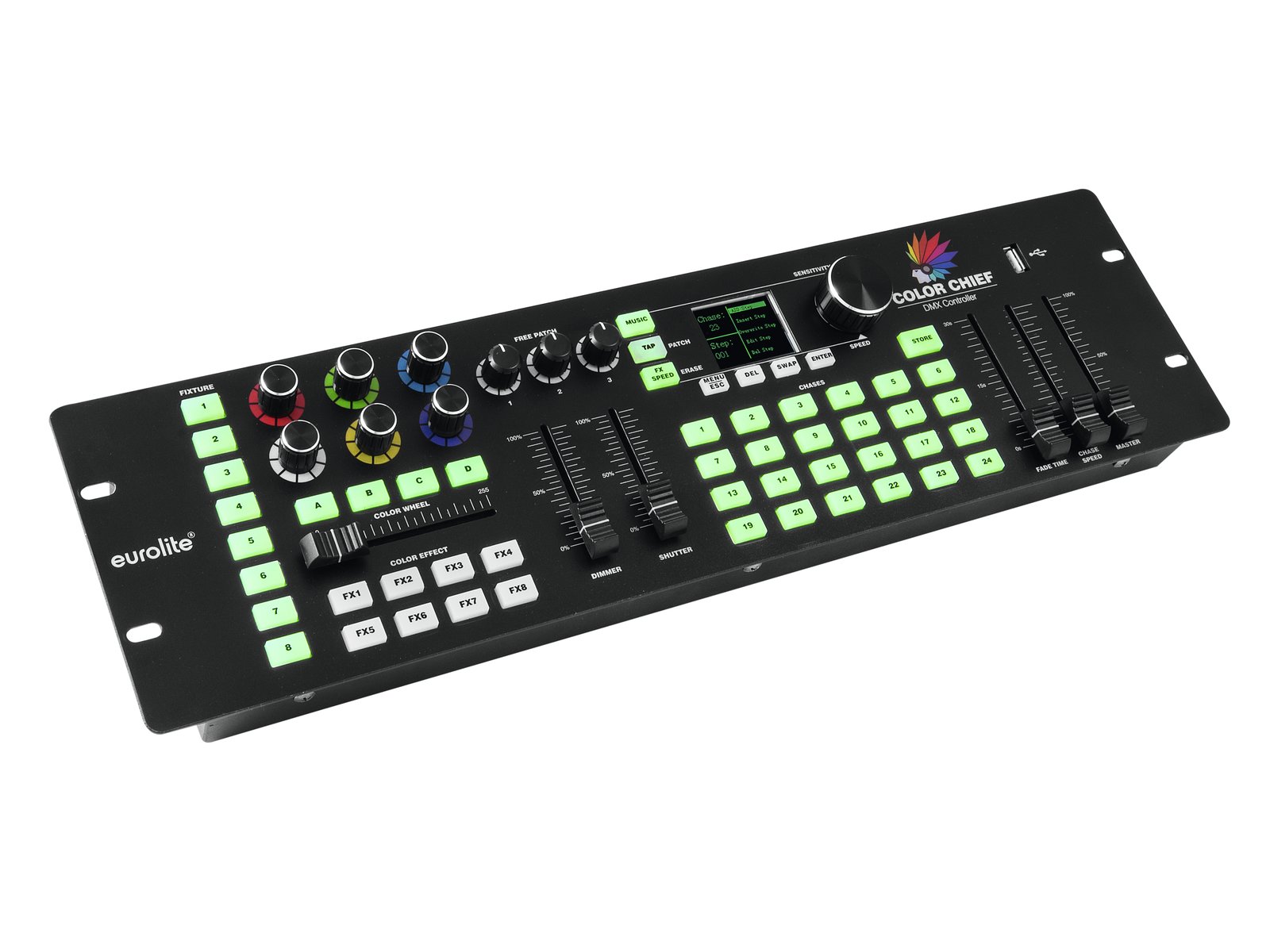

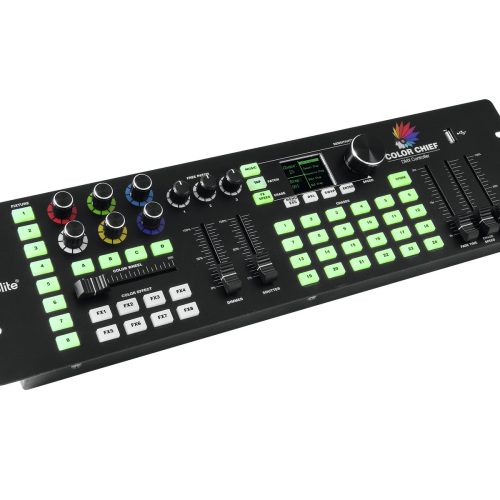

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Quick and easy programming
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases and scenes can be run simultaneously
• USB port for storing program data
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• Programmable 24 scenes/chases distributed over 1 page(s )
• Can transmit up to 240 DMX channels
• Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
• (19″) 48.3 cm rack installation 3 U
• Desktop console housing
• For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels
• Silent operation
• Firmware can be updated

Package contents

• 1 x controller, 1 x user manual, 1 x external mains adapter

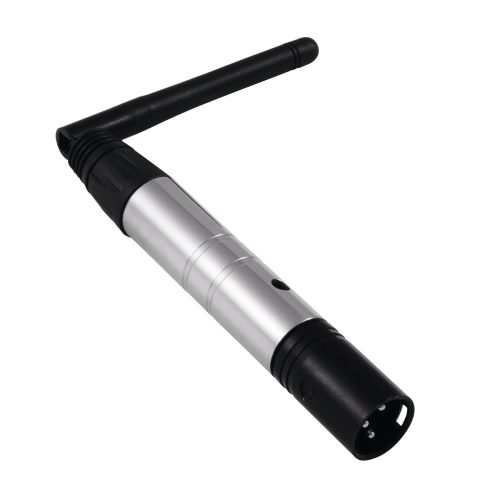

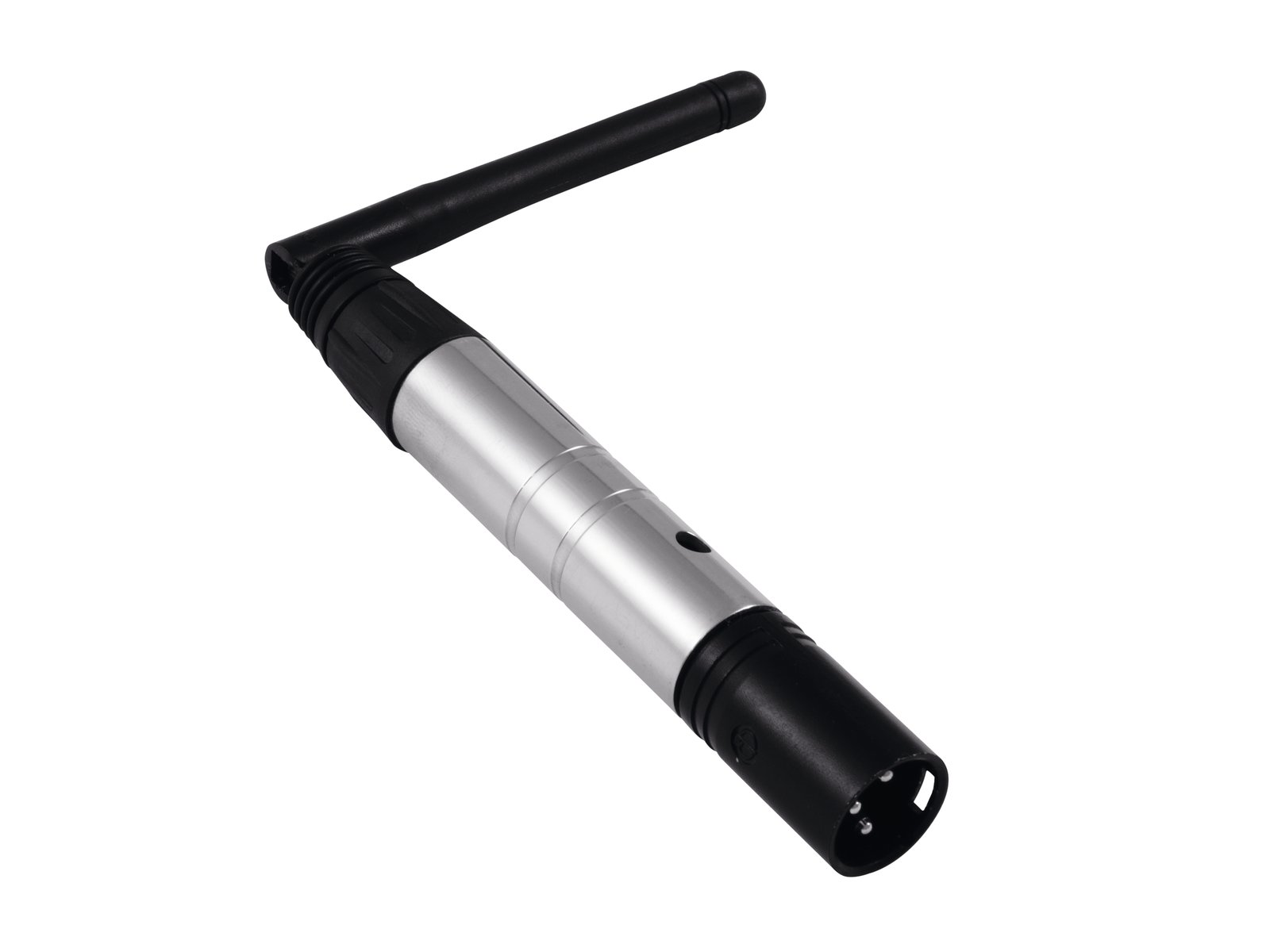

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR adapter (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Can transmit up to 512 DMX channels
• Control via QuickDMX; DMX; plug and play
• Operating range up to 400m
• Up to 6 transmitters can be operated in parallel without interference

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable

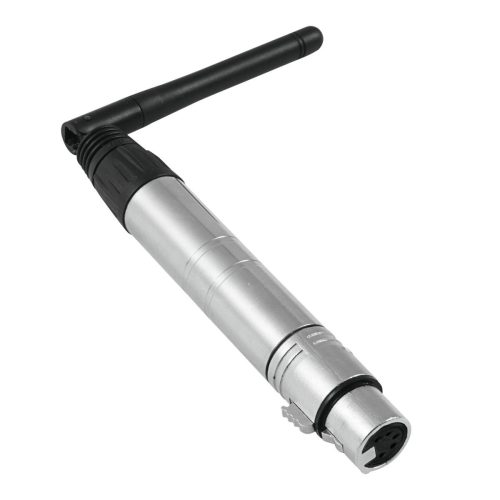

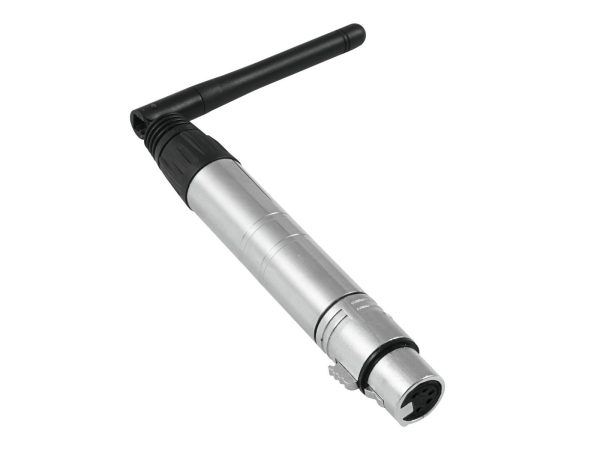

EUROLITE QuickDMX Wireless receiver phantom-power

Compact wireless DMX receiver 2.4 GHz, phantom powered

• User-friendly 5-pin XLR adapter(female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• Can receive and process up to 512 DMX channels
• Control via DMX; QuickDMX; plug and play
• Operating range up to 400m
• Up to 6 transmitters can be operated in parallel without interference

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity
